Meeting Minutes March 14, 2021
Attended: Lauryn, Francis, Brian, Thiri, Yin
Updates
- Traced & debug v4.1
- identified and confirmed that we used the wrong capacitors - C4, C9, C10, C11 (used 10uF instead of 0.1uF)
- Reorganized bumblebee inventory
- Got help from professor Weldon (looked at Volt. reg. schematic for v4.1)
- Identified that feedback is not connected to Vout
- Cannot verify that capacitor 5 (C5) is connected to Vout (Schematic does not show that)
- Adding the Jumper wire causes issues with C2 and C5
- Suggested by manufacturer: use 1.0uF, 10uF and 8.2pF that is separated to have a different output freq. (looking at XBee Schematic)
- instead we have C1 = 1.0uF, C15 = 18pF on our board

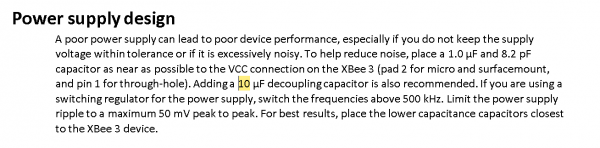

- As reference:
To Do
- Solder the correct capacitors for v4.1
- Download Pspice
- Stimulate voltage reg. and download library/parts
- Stimulate ideal situation
- Stimulate non-ideal situation to get close to 5V
- Min value: 1/2x cap. value
- Max Value: 2x Cap. value
- Continue to trace/debug for any more problems
- Create new/update schematic for new version of v4.1
- Range test v4.0 w/o voltage reg. and compare
- Test v4.0 w/ other hardware teams
Meeting Minutes March 28, 2021
Attended: Lauryn, Francis, Brian, Thiri, Yin
Updates
- Backed up Bumblebee files from computer lab onto Spring 2021 bumblebee google drive folder
- Worked on v4.1 in pspice; creating simulation design
- attempted to configure many to one network
- Links for Many-to-One research:
To Do
- Continue design in pspice
- Research on Many-to-One Network
- Attempt to set up XBee as many-to-one network
Meeting Minutes March 29, 2021
Attended: Lauryn, Francis, Brian, Thiri, Yin
Updates
- Worked on CDR presentation
- Meeting up in lab on Friday, April 2nd, from 9am - 1pm
- cancelled lab on Sunday, April 4th.
To Do
- research on many-to-one network
- Finish creating pspice design and simulation
- attempt to do many-to-one network with all three XBees
