* Use the Arduino IDE to program the device using the AVRISP MkII Programmer.
- Use an ISP connector to attach the programmer to the Cranberry board.

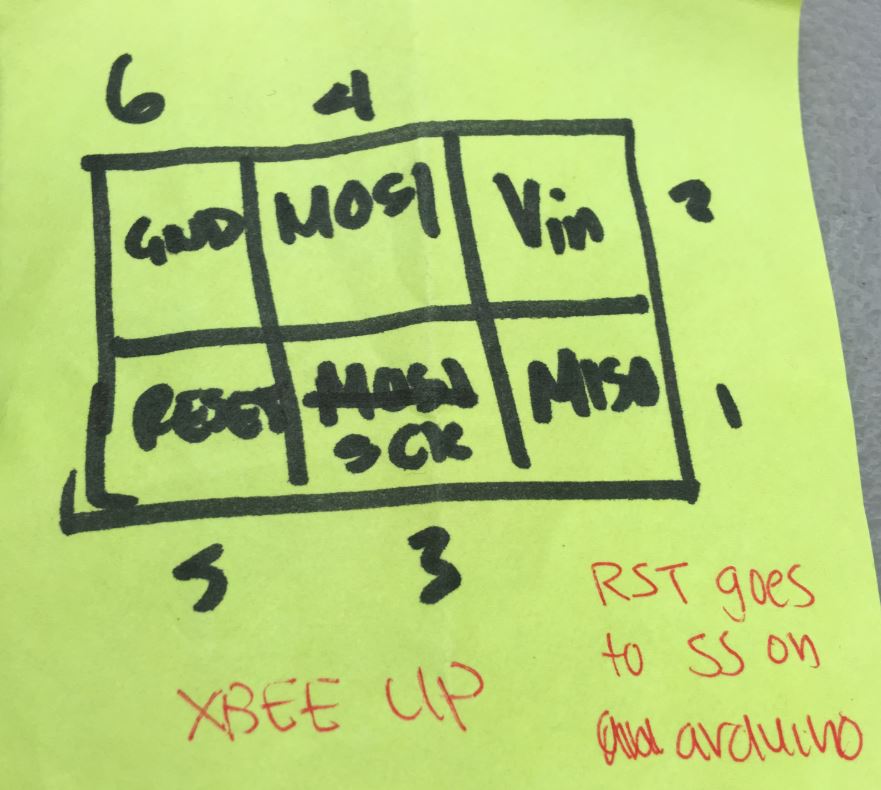

- Connections: MISO (1), VCC(2), SCK(3), MOSI(4), RESET(5), and GND(6).
- Make sure that you have the right board selected: Arduino Pro or Mini (3.3V 8MHz) w/ Atmega328.
- Note: Board must be powered using an external voltage source (e.g. battery or generator).
Burning the Bootloader
-
- Run board detector
- Run board programmer
- If it worked, you should be able to upload programs to it
- RESET (SS) - PIN 10
- MOSI - PIN 11
- MISO - PIN 12
- SCK - PIN 13
- VIN - 3V3
